Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: Tenchy
Chứng nhận: Reach , RoHS
Số mô hình: TCS-002
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: Có thể thương lượng
Thời gian giao hàng: 5-8 ngày làm việc
Điều khoản thanh toán: T/T, Liên minh phương Tây
Vật liệu: |
Silicone tinh khiết |
Đặc trưng: |
Chống nhiệt độ cao/thấp, -50 đến 250 ℃ |
Màu sắc: |
Có sẵn nhiều màu |
bài luận: |
＞90% |
Tỉ trọng: |
0,18 - 0,42g/cm3 |
Độ bền kéo: |
＞0,3MPa |
Vật liệu: |
Silicone tinh khiết |
Đặc trưng: |
Chống nhiệt độ cao/thấp, -50 đến 250 ℃ |
Màu sắc: |
Có sẵn nhiều màu |
bài luận: |
＞90% |
Tỉ trọng: |
0,18 - 0,42g/cm3 |
Độ bền kéo: |
＞0,3MPa |

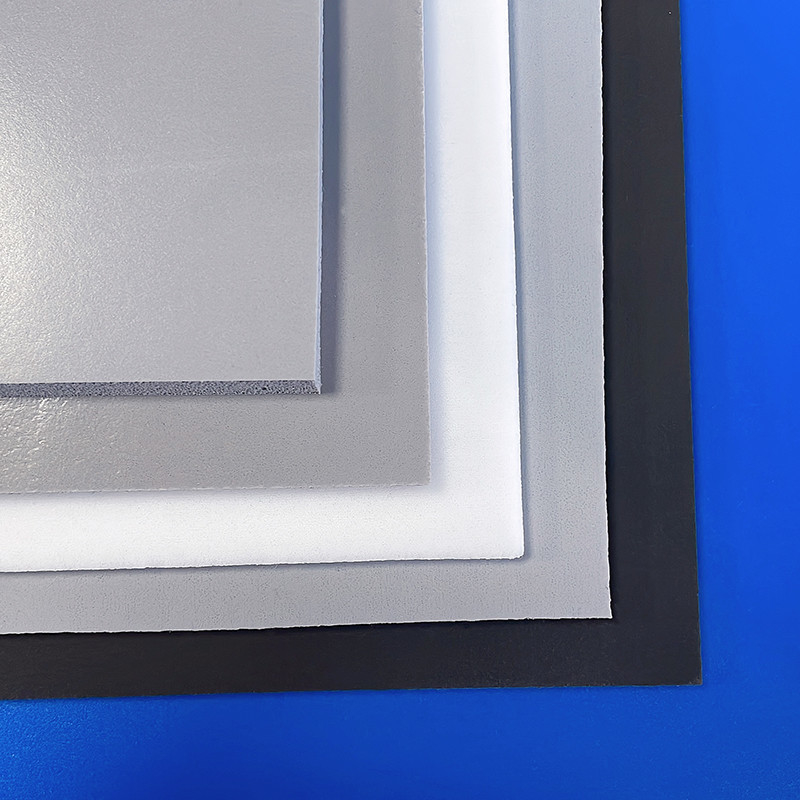

UV 94 Fire Retardant Silicone Rubber Sheet High Temperature Rubber Strips
Silicone Sponge Sheet Liquid Silicone Foaming UV 94 Fire Retardant
TCS silicone foam sheet has excellent resistance to compression set. Compared to normal carbon-based foaming materials, this material has exceptional high and low temperature resistance (-60°C to 200°C), high flame retardancy (V-0 rating), and extremely low smoke concentration.
Moreover, this material exhibits excellent aging and weather resistance, making it an ideal material for shock absorption, cushioning, sound insulation, protection, insulation, and fire protection. Its color and density can be customized according to specific needs.
| Testing Item | Unit | Test Standard | TE800-SS | TE800-S | TE800-HS | TE800-H | TE800-F | TE800-R | TE800-FC |
| Color | / | / | Black | Black/Grey | Black | Black/Grey | Grey | Grey | White/Grey |
| Density | g.cm-3 | ASTM D 1056 | 0.18 ± 0.03 | 0.2±0.03 | 0.25±0.03 | 0.35±0.03 | 0.42±0.03 | 0.50±0.05 | 0.42±0.03 |
| Compression Stress,25% | KPa | ASTM D 1056 | 10± 3 | 20± 3 | 30± 5 | 65 ± 10 | 110± 15 | 145 ± 20 | 110± 15 |
| Compression Set | % | ASTM D 1056 | ≤3.0 | ≤3.0 | ≤3.0 | ≤5.0 | s5.0 | ≤5.0 | ≤5.0 |
| Tensile Strength | MPa | GB/T 528-2009 | ≥ 0.3 | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.4 | ≥0.4 | ≥ 4MPa |
| Elongation | % | GB/T 528-2009 | ≥ 90 | ≥ 90 | ≥ 90 | ≥ 90 | ≥100 | ≥100 | ≥ 100 |
| Water Absorption | % | ASTM D 570 | 55.0 | ≤5.0 | ≤ 5.0 | ≤ 5.0 | ≤ 5.0 | ≤5.0 | ≤ 5.0 |
| Environmental Testing | / | ROHS/REACH/TSCA | Pass | Pass | Pass | Pass | Pass | Pass | Pass |
| Burning Flame Spread Ratings | / | ASTM E162 | Pass | Pass | Pass | Pass | Pass | Pass | Pass |
| Burning Smoke Concentration | / | ASTM E 662-2015 | Pass | Pass | Pass | Pass | Pass | Pass | Pass |
| Burning Toxic Gas Emissions | / | SMP 800-C-2009 | Pass | Pass | Pass | Pass | Pass | Pass | Pass |
| Low Temperature Bending | / | ASTM D 1056 | -55℃ Pass | -55℃ Pass | -55℃ Pass | -55℃ Pass | -55℃ Pass | -55℃ Pass | -55℃ Pass |
| Dielectric Strength | KV/mm | GB/T 1695-2005 | ≥ 2.0 | ≥2.0 | ≥ 2.0 | ≥3.0 | ≥ 3.5 | ≥4 | ≥6 |
| Volume Resistivity | Q ·cm | GB/T 1695-2005 | ≥ 1.0*10° | ≥ 1.0*10" | ≥ 1.0*10" | ≥ 1.0*10° | ≥ 1.0*10° | ≥ 1.0*10" | ≥ 1.0*10° |
| Flame Retardant Rating | / | UL94-2013 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 |
Advantages:
Outstanding flame retardancy: Complies with the most stringent UL, railway, and aerospace standards. Minimal flame, smoke, and toxicity while burning. Superb performance under extreme temperatures, both high and low. Resistance to compressive strain, ensuring stability at high and ambient temperatures. Highly resistant to UV and ozone, with small compression set and excellent sealing. High-quality service: 24/7 support from professional technical service engineers.
Applications:
Suitable for a wide range of applications, including new energy vehicles, power batteries, charging stations, aerospace technology, high-speed railways, telecommunications, electrical cabinets, communication equipment, lighting, drones, and military and civilian ships.
Packaging
1. Standard carton size: 35*40*50cm.
2. Customed package is available, including customed paper card, plastic bag, label, printed carton etc.
Shipping
1. Pre-order negotiation, including items, quantity, specific package requirement if you have.
2. PI confirmation, including specifications, prices, payment account, shipping cost & agent etc.
3. Payment confirmation.
4. Shipping arrangement, packages will be under strict inspection.
5. Goods loading and delivering.
Advantages of silicone material
1. Soft,flexible,pliable,tough,light.
2. No smell,no posion,eco-friendly.
3. Antiwear,water-proof,oil-proof.
4. High temp-tolerant,col-resistanr,UV-resistant,anti-acid.
FAQ
Q1. Do you have any certifications?
A. Yes. we have FDA, LFGB, Reach, RoHs.
Q2. Do you have a minimum order?
A. We can accept small quantity order.
Q3. Can you custom according to our design?
A. Yes, drawing provided, we can custom.
Q4. Who are your customers?
A. Factory, wholesaler
Q5. What's your lead time?
A. It usually takes 3 to 15 days.
Q6. How will you ship my order?
A. By sea(FCL, LCL), by air, by international express.
