Shenzhen Tenchy Silicone&Rubber Co.,Ltd sales@tenchy.cn 86-755-29181281
Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: Tenchy
Chứng nhận: Reach , RoHS
Số mô hình: TCS-001
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: Có thể thương lượng
Thời gian giao hàng: 5-8 ngày làm việc
Điều khoản thanh toán: T/T, Liên minh phương Tây
Vật liệu: |
Silicone tinh khiết |
Đặc trưng: |
Chống nhiệt độ cao/thấp, -50 đến 250 ℃ |
Màu sắc: |
Có sẵn nhiều màu |
bài luận: |
＞90% |
Tỉ trọng: |
0,18 - 0,42g/cm3 |
Độ bền kéo: |
＞0,3MPa |
Vật liệu: |
Silicone tinh khiết |
Đặc trưng: |
Chống nhiệt độ cao/thấp, -50 đến 250 ℃ |
Màu sắc: |
Có sẵn nhiều màu |
bài luận: |
＞90% |
Tỉ trọng: |
0,18 - 0,42g/cm3 |
Độ bền kéo: |
＞0,3MPa |

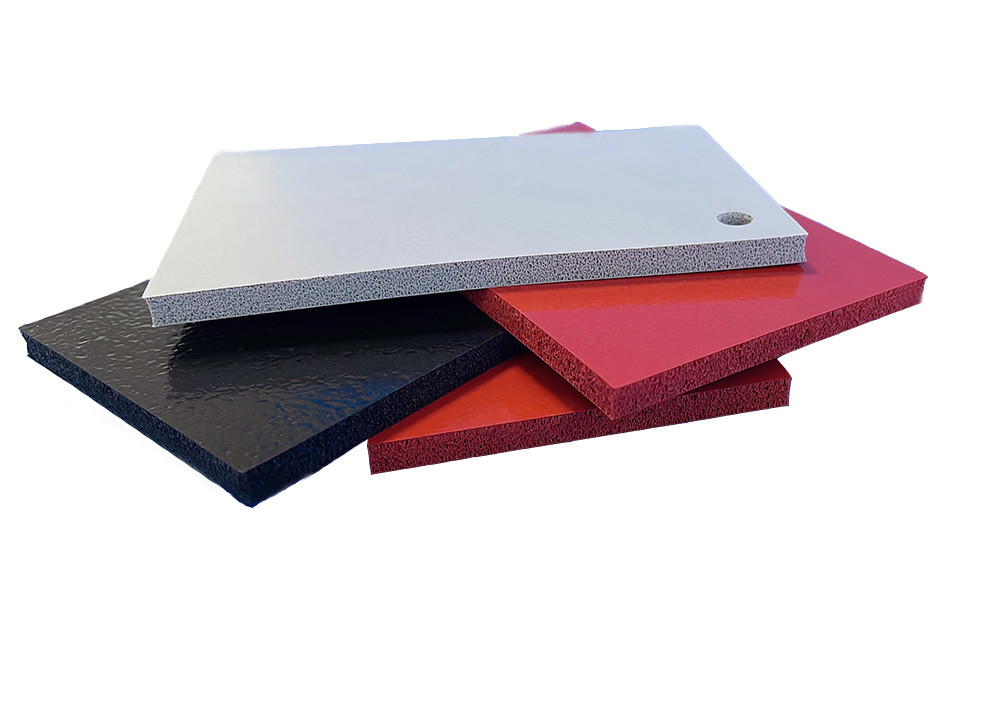

Fire Retardant Heat Resistant Rubber Strip Liquid Foam Silicone Mat
Liquid Foam Silicone Rubber Sheet Fire retardant High Temp Resistant
TCS silicone foam sheet has excellent resistance to compression set. Compared with nomral carbon-based foaming materials, this material has excellent high and low temperature resistance (- 60 - 200°C), high flame retardancy (V-0), and extremely low smoke concentration.
In addition, the material has excellent aging and weather resistance, making it an ideal material for shock absorption, cushioning, sound insulation, protection, insulation and fire protection, color/density can be customized as need
| Testing Item | Unit | Test Standard | TE800-SS | TE800-S | TE800-HS | TE800-H | TE800-F | TE800-R | TE800-FC |
| Color | / | / | Black | Black/Grey | Black | Black/Grey | Grey | Grey | White/Grey |
| Density | g.cm-3 | ASTM D 1056 | 0.18 ± 0.03 | 0.2±0.03 | 0.25±0.03 | 0.35±0.03 | 0.42±0.03 | 0.50±0.05 | 0.42±0.03 |
| Compression Stress,25% | KPa | ASTM D 1056 | 10± 3 | 20± 3 | 30± 5 | 65 ± 10 | 110± 15 | 145 ± 20 | 110± 15 |
| Compression Set | % | ASTM D 1056 | ≤3.0 | ≤3.0 | ≤3.0 | ≤5.0 | s5.0 | ≤5.0 | ≤5.0 |
| Tensile Strength | MPa | GB/T 528-2009 | ≥ 0.3 | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.4 | ≥0.4 | ≥ 4MPa |
| Elongation | % | GB/T 528-2009 | ≥ 90 | ≥ 90 | ≥ 90 | ≥ 90 | ≥100 | ≥100 | ≥ 100 |
| Water Absorption | % | ASTM D 570 | 55.0 | ≤5.0 | ≤ 5.0 | ≤ 5.0 | ≤ 5.0 | ≤5.0 | ≤ 5.0 |
| Environmental Testing | / | ROHS/REACH/TSCA | Pass | Pass | Pass | Pass | Pass | Pass | Pass |
| Burning Flame Spread Ratings | / | ASTM E162 | Pass | Pass | Pass | Pass | Pass | Pass | Pass |
| Burning Smoke Concentration | / | ASTM E 662-2015 | Pass | Pass | Pass | Pass | Pass | Pass | Pass |
| Burning Toxic Gas Emissions | / | SMP 800-C-2009 | Pass | Pass | Pass | Pass | Pass | Pass | Pass |
| Low Temperature Bending | / | ASTM D 1056 | -55℃ Pass | -55℃ Pass | -55℃ Pass | -55℃ Pass | -55℃ Pass | -55℃ Pass | -55℃ Pass |
| Dielectric Strength | KV/mm | GB/T 1695-2005 | ≥ 2.0 | ≥2.0 | ≥ 2.0 | ≥3.0 | ≥ 3.5 | ≥4 | ≥6 |
| Volume Resistivity | Q ·cm | GB/T 1695-2005 | ≥ 1.0*10° | ≥ 1.0*10" | ≥ 1.0*10" | ≥ 1.0*10° | ≥ 1.0*10° | ≥ 1.0*10" | ≥ 1.0*10° |
| Flame Retardant Rating | / | UL94-2013 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 |
Advantages:
Excellent flame retardancy: meet the highest UL, railway and aerospace standards
When burning: small flame, low smoke and low toxicity
High and low temperature resistance: excellent performance under extreme temperatures
Compressive strain resistance: stable for a long time at high temperature and ambient temperatureUV and ozone resistant small compression set and good sealing
Quality service: professional technical service engineer supports 24/7
Applications:
New energy vehicles, power batteries, charging piles, aerospace, high-speed railway, telecommunications and electrical cabinets, communication equipment, lighting, drones, military and civilian ships, etc.
Packaging
1. Standard carton size: 35*40*50cm.
2. Customed package is available, including customed paper card, plastic bag, label, printed carton etc.
Shipping
1. Pre-order negotiation, including items, quantity, specific package requirement if you have.
2. PI confirmation, including specifications, prices, payment account, shipping cost & agent etc.
3. Payment confirmation.
4. Shipping arrangement, packages will be under strict inspection.
5. Goods loading and delivering.
Advantages of silicone material
1. Soft,flexible,pliable,tough,light.
2. No smell,no posion,eco-friendly.
3. Antiwear,water-proof,oil-proof.
4. High temp-tolerant,col-resistanr,UV-resistant,anti-acid.
FAQ
Q1. Do you have any certifications?
A. Yes. we have FDA, LFGB, Reach, RoHs.
Q2. Do you have a minimum order?
A. We can accept small quantity order.
Q3. Can you custom according to our design?
A. Yes, drawing provided, we can custom.
Q4. Who are your customers?
A. Factory, wholesaler
Q5. What's your lead time?
A. It usually takes 3 to 15 days.
Q6. How will you ship my order?
A. By sea(FCL, LCL), by air, by international express.
