Chi tiết sản phẩm
Nguồn gốc: Thâm Quyến, Trung Quốc
Hàng hiệu: TENCHY
Chứng nhận: FDA
Số mô hình: STP-916
Điều khoản thanh toán và vận chuyển
Giá bán: ISO 9001:2015, FDA, LFGB
Điều khoản thanh toán: T/T, Liên minh phương Tây
Khả năng cung cấp: 10000 mét/ngày
Nhà sản xuất: |
Công ty Tenchy Silicone và Cao su, LTD |
Vật liệu: |
TPE |
Độ cứng: |
Bờ 20A đến 90a |
Màu sắc: |
Có thể được tùy chỉnh |
TÁN THÀNH: |
Liên hệ thực phẩm FDA an toàn |
MOQ: |
1000 mét |
Nhà sản xuất: |
Công ty Tenchy Silicone và Cao su, LTD |
Vật liệu: |
TPE |
Độ cứng: |
Bờ 20A đến 90a |
Màu sắc: |
Có thể được tùy chỉnh |
TÁN THÀNH: |
Liên hệ thực phẩm FDA an toàn |
MOQ: |
1000 mét |

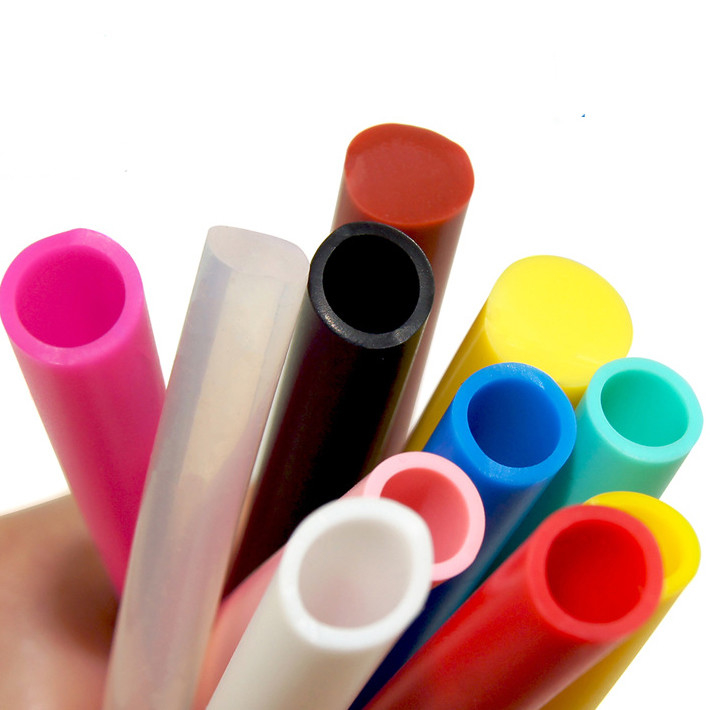

14mm 16 Mm TPE Hose ID Flexible TPE Medical Tubing Shore 20A
| Food Grade TPE Tube | ||||||
| Item # | Specification | Tolerance | Available Length per coil (meter) | |||
| ID(mm) | OD(mm) | Thickness (mm) |
for ID | for Thickness | ||
| ST-12 | 1.0 | 2.0 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-1525 | 1.5 | 2.5 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-23 | 2.0 | 3.0 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-24 | 2.0 | 4.0 | 1.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-35 | 3.0 | 5.0 | 1.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-47 | 4.0 | 7.0 | 1.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-58 | 5.0 | 8.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-69 | 6.0 | 9.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-710 | 7.0 | 10.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-812 | 8.0 | 12.0 | 2.0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-913 | 9.0 | 13.0 | 2.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1014 | 10.0 | 14.0 | 2.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1216 | 12.0 | 16.0 | 2.0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1420 | 14.0 | 20.0 | 3.0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1621 | 16.0 | 21.0 | 2.5 | ±0.25 | ±0.15 | 30, 50 |
| ST-1824 | 18.0 | 24.0 | 3.0 | ±0.3 | ±0.15 | 30, 50 |
| ST-2026 | 20.0 | 26.0 | 3.0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2226 | 22.0 | 26.0 | 2.0 | ±0.4 | ±0.2 | 30, 50 |
| ST-2531 | 25.0 | 31.0 | 3.0 | ±0.6 | ±0.2 | 30, 50 |
| ST-3038 | 30.0 | 38.0 | 4.0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3240 | 32.0 | 40.0 | 4.0 | ±0.6 | ±0.4 | 30, 50 |
| ST-3844 | 38.0 | 44.0 | 3.0 | ±0.6 | ±0.4 | 30, 50 |
Material Description
● SEBS food grade material
● Standard colors: black, red, blue, white, gray, green, transparent colors (other colors can be produced on request)
Certifications
● FDA 21 CFR 177.2600
Main Features
● Temperature resistance from -60℃ to 80℃.
● Excellent aging resistance.
The performance decline rate is less than 10% after one week of aging in the artificial accelerated aging box, and the performance decline is less than 10% for 100 hours of ozone aging (38°C).
● Excellent electrical properties
Its dielectric constant is 1.3*10-4 at one kilohertz, 2.3*10-4 at one megahertz; volume resistance is 9*1016Ω/cm in one minute; 2*1017Ω/cm in two minutes .
● Good solubility, blending performance and excellent oil-extending properties.
It can be dissolved in many common solvents. Its solubility parameter is between 7.2~9.6. It can be blended with a variety of polymers and can be used in rubber industry.
● Elastomers that can be used without vulcanization.
The processing performance is similar to SBS. The scrap can be reused. It meets environmental protection requirements, is non-toxic, and meets FDA requirements.
● The specific gravity is lighter, about 0.91.
● SEBS has good UV stability, oxidation resistance and thermal stability, so it can also be used in asphalt for roofs and road construction.
