Shenzhen Tenchy Silicone&Rubber Co.,Ltd sales@tenchy.cn 86-755-29181281
Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: TENCHY
Chứng nhận: USP CLASS VI
Số mô hình: TCM-005
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 500
chi tiết đóng gói: Ống dạ dày silicon với khử trùng kép và bao bì vô trùng - Ống cho ăn y tế, được thiết kế đặc biệt để
Thời gian giao hàng: 5-8 ngày
Điều khoản thanh toán: D/A, D/P, T/T, Western Union, Moneygram
Khả năng cung cấp: 1000 mỗi ngày

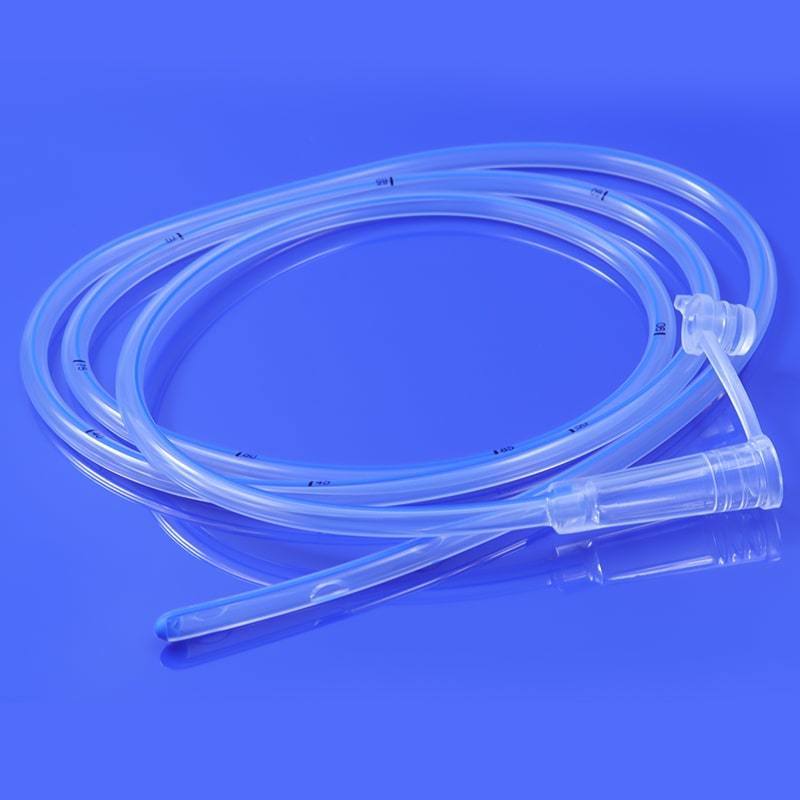

Medical-grade silicone feeding tubes are specifically designed for insertion to deliver nutritional supplements into the stomach of patients with impaired oral intake. Featuring optimal flexibility and biocompatibility, they provide gastrointestinal nutrition support for patients with normal digestive function but swallowing disorders, facilitate gastric lavage in drug poisoning emergencies, and enable gastric juice aspiration to monitor therapeutic efficacy in upper gastrointestinal bleeding management.
| Feature | Technical Specifications & Clinical Value |
| Medical Silicone | 100% platinum-cured silicone, free from plasticizers/allergens. Passes cytotoxicity & skin irritation tests (ISO 10993). |
| Low-Trauma Tip | Laser-polished closed distal tip + smooth side eyes (≤0.5mm edges) to prevent mucosal adherence and ulceration. |
| Kink-Resistant | Dynamic hardness balance (45±5 Shore A). Optimized lumen design reduces clogging risk. |
| Depth Markings | 1cm interval depth scales (FDA color standards, ≤0.2mm error). Color-coded connectors (red-gastric/blue-enteral). |
| Sterility Assurance | Double EO sterile barrier packaging (<1ppm residues). Supports gamma resterilization for OR use. |
Basic Information
| Item | Specification |
| Model | TCM-001 (ODM/OEM supported) |
| Brand | TENCHY Medical® (custom packaging/logo/manuals) |
| Certifications | CE 0459 (Class IIa), FDA 510(k), USP Class VI, LFGB, full biocompatibility reports |
| Sterilization | Ethylene Oxide (EO), batch traceable |
Physical Specifications
| Parameter | Range | Notes |
| Diameter (FR) | 8-26 FR (2FR increments) | ID: 2.67mm(8FR) ~ 6.67mm(20FR) |
| Length | 1250cm | Custom length (±5cm precision) |
| Side Eyes | 2~6 eyes (size-adapted) | Total eye area > lumen area to prevent clogging |
| Temp Resistance | -80℃~250℃ | Autoclavable (reusable type only) |
Performance Data
| Parameter | Value | Standard |
| Indwell Time | ≤30 days | EN 1618:2021 long-term implant |
| Reuse Cycles | Single Use | Tensile strength loss <8% post-autoclave |
| Flow Rate(20FR) | ≥250ml/min (aqueous) | 30° gravity drip simulation |
| Tensile Strength | ≥15N (break threshold) | ISO 10555-1 catheter testing |
| Radiopacity Acc. | ≤1cm positioning error | Clinical DSA validation |
Service Terms
| Item | Policy |
| Samples | 3 standard models free (requires medical license); global delivery in 3 days |
| Customization | OD/length/scale colors/packaging/logo; MOQ 500 units |
| Shelf Life | 3 years (unopened, <25℃, dark storage) |
| Support | Insertion videos/complication guide/sterilization protocols (multilingual) |
Applications:
· ICU gastric feeding
· Gastric feeding after partial gastrectomy for gastric Cancer
· Neurological Rehabilitation Gastric Feeding
· Home Care Gastric Feeding for Patients with Chronic Diseases (Diabetes Mellitus/Chronic Kidney Disease)
· Home Care Gastric Feeding for Long-Term Bedridden Patients
